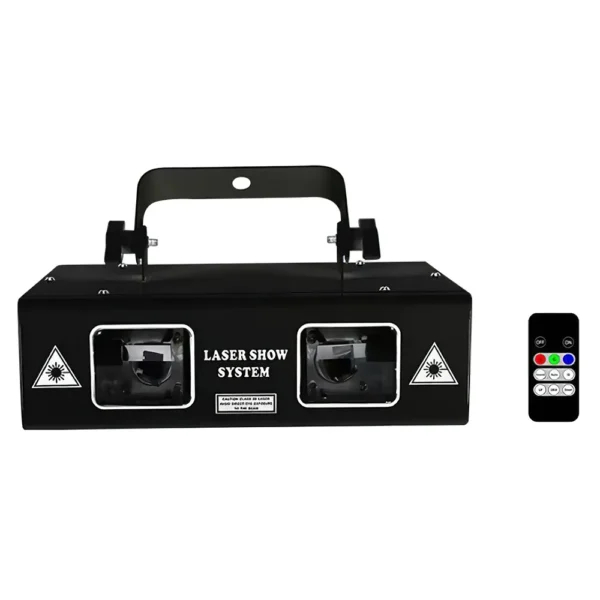

20W Full-color Laser Light
MAIN FEATURES
Power Supply: Input voltage: 100~250V/AC, 50/60Hz, Maximum power: 500W Laser Parameters: 20W RGB (Red, Green, Blue)Red Laser Power: 6W, Laser Wavelength: 638nmGreen Laser Power: 6W, Laser Wavelength: 520nmBlue Laser Power: 10W, Laser Wavelength: 440nmBeam size at aperture: <6.5*5.5(H)mm, Divergence angle: <1.5mradLaser Safety Class: Class 4Protection Level: IP61Scanning System: High-speed galvanometer with large torque, Speed: >30KPPS ILDA @8° Maximum scanning angle: 60°, ±5V signal input X-axis mirror size: Width 12 * Length 14mm Y-axis mirror size: Width 10 * Length 20mm Maximum accommodated laser spot: Width 7 * Height 8mm Control Modes: ILDA mode (PC control), DMX-512 mode, PRG (TF Card playlist), ILD (TF Card ILDA file playback), sound control, auto mode; Optional with PANGOLIN's FB4 control system with SFS single dot protection function TF Card Playback Format: Supports standard ILDA format files with extension .ILD Control Interfaces: Standard DB25-ILDA interface, simplified RJ45-ILDA interface (easy cable assembly and wiring, tested with no attenuation for up to 300 meters), 3PIN XLR connectors Machine Dimensions: 300x380x220mm Net Weight: 19.5Kg
Product Description
