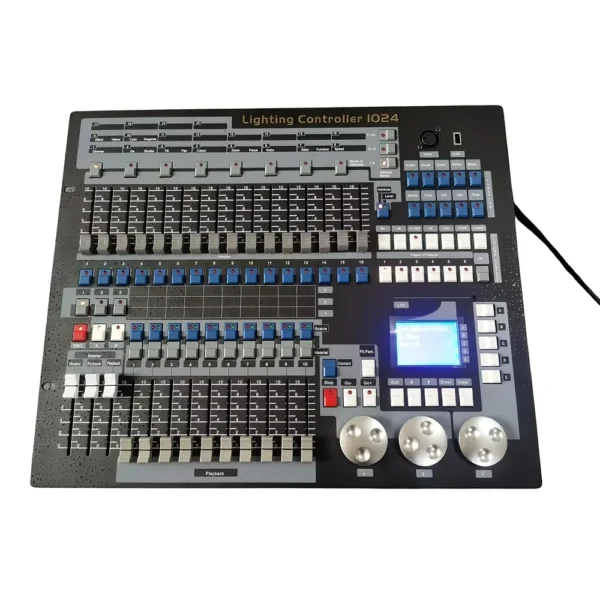

Light Console 1024

MAIN FEATURES

Power supply: AC 100-240V / 50-60Hz
DMX512/1990 standard, with a maximum of 1024 DMX control channels, and two opto-isolated signal output ports.
Capable of controlling up to 96 computer lights or dimmers.
Utilizes Pearl fixture library (R20 format), with the ability to create custom fixture libraries on the console.
Features backlit LCD display with a unique switchable interface between Chinese and English. Language options available for panel display.
Built-in graphic trajectory generator with 227 pre-set graphics to easily control computer lights' trajectories, including circles, spirals, rainbows, and chases, among other effects.
Independent adjustment of graphic parameters such as amplitude, speed, interval, wave, and direction for convenient creation of desired shapes and scenes.
Each scene can save up to 5 graphics, with a maximum operation of 10 graphics simultaneously.
Supports up to 100 program storage for lighting shows, providing an everlasting showcase of creativity. Built-in timecode and external MIDI trigger functions for effortless synchronization of stunning sound and light displays.
Scene overlapping functionality and widt
parameter for faster programming.
Advanced grouping function available.
Capacity to store 100 materials, with flexible sharing options for independent or shared materials.
Four storage modes for materials, offering convenience and flexibility in storing and calling materials.
Can store 120 replay scenes for multi-step and single-step scenes, with each multi-step scene capable of storing up to 600 individual steps.
Can simultaneously output and run 12 replay scenes.
Equipped with 12 master playbacks with faders. Compatible with both button point control and fader control methods.
Functions include resetting fixture DMX addresses, vertical/horizontal swapping, and channel output inversion.
Data retention during power off or sudden power loss.
Console data can be backed up and reimported using a USB flash drive, allowing for data sharing among consoles of the same model.
Supports remote software upgrades, enabling the addition of new features anytime, anywhere.
Includes pre-programming function for offline programming convenience.
Preset faders for convenient control of computer light attributes.
Instant blackout and scene lock functions supported.
Professional gooseneck working lamp available, suitable for indoor and outdoor performances (optional).
Product dimensions: 500x460x120mm
Package dimensions: 565x485x210mm
Net weight/gross weight: 7.6kg/10.1kg
